Underlays

Underlays for all scenarios

The full range of underlays we have to offer.

ELKA LAY

Handy lightweight 15m2 roll
Robust 3mm underlay for use with real wood engineered and laminate flooring

Suitable prior to fitting laminate and real wood engineered flooring.

ELKA DUO LAY

Handy lightweight 15m2 roll
Robust 3mm underlay for use with real wood engineered and laminate flooring
Includes laminated Damp Proof Membrane (DPM) back for use on concrete ground floor installations
Suitable for underfloor heating

Suitable prior to fitting laminate and real wood engineered flooring

ELKA COMFORT LAY

Handy lightweight 15m2 roll
Luxury 5mm underlay for use with laminate and real wood engineered flooring
20db sound reduction
Low thermal resistance
Cushioned support increases underfoot comfort
Shock absorbent / vapour barrier
Exceptional acoustic insulation performance

Suitable for embedded underfloor heating

ELKA QT UNDERLAY

Handy lightweight 15m2 roll
Impressive 22db sound reduction
Luxury 5mm underlay for use with real wood engineered and laminate flooring
Floor levelling characteristics
Integrated Damp Proof Membrane (DPM) system
Suitable for underfloor heating

Suitable prior to fitting laminate and real wood engineered flooring

ELKA 3IN1 UNDERLAY

Self adhesive - bonds floor directly to underlay
Specialist installation over hard surface substrates
Handy lightweight 10m2 roll
Luxury 3mm underlay for use with elka real wood engineered flooring
Impressive 22db sound reduction
Noise reducing, shock absorbent
Foil backing with 50mm tape overlap giving an integrated sealed DPM system
Suitable for engineered floors up to 190mm

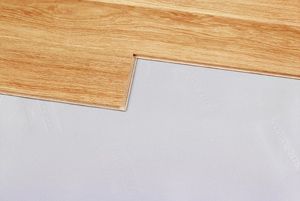

QUICKSTEP UNICLIC PLUS UNDERLAY

Quickstep Uniclic Plus underlay is a good basis for rooms with less traffic. It's a premium basic underlay that significantly reduces the sound of footsteps in your room.

Reflection sound reduction: **
Transmission sound reduction: ?LW=19dB
1 roll: 15m²
Thickness: 2mm

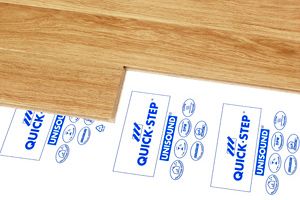

QUICKSTEP UNISOUND UNDERLAY

Unisound is the classic Quickstep underlay. It offers high-quality permanent sound absorption.

Reflection sound reduction: ***
Transmission sound reduction: ?LW=19dB
1 roll: 15m²
Thickness: 2mm

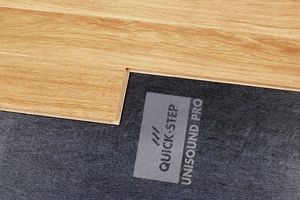

QUICKSTEP UNISOUND PRO UNDERLAY

Quickstep Unisound Pro is the underlay of choice when you wish to optimally reduce reflection sound; this is the sound you hear when you walk on a floor

Reflection sound reduction: ****
Transmission sound reduction: ?LW=20dB
1 roll: 15m²
Thickness: 2mm

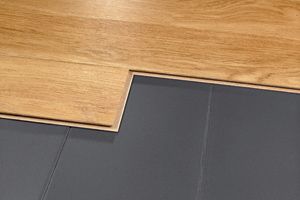

QUICKSTEP TRANSITSOUND ULTRA UNDERLAY

The Quickstep Transitsound Ultra underlay is the best choice if you wish to reduce transit sounds, i.e. sounds that get through to the room below. As such, it is highly recommended for multi-level buildings.

Reflection sound reduction: ***
Transmission sound reduction: ?LW=21dB
1 box: 10m²
Thickness: 3mm

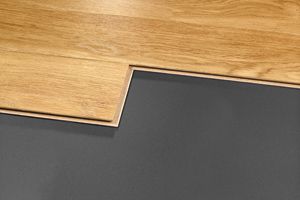

QUICKSTEP COOLHEAT UNDERLAY

Quickstep CoolHeat is the underfloor of choice when your room is fitted with underfloor heating. Besides its excellent thermal efficiency, the CoolHeat underlay also nicely levels out your base floor.

Thermal resistance: R=0.026 m² °K/W
1 roll: 15 m²
Thickness: 1.3 mm

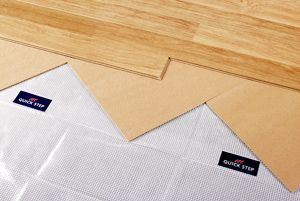

QUICKSTEP SOFTBOARD UNDERLAY

Quickstep Softboard is a solid underfloor made of stable wood fibres that can level out unevennesses up to 6 mm. Combined with the Quick-Step Screen, it also protects against rising damp or condensation. Quick-Step Softboard also increases floor insulation. Because of this, it is not suitable for rooms with floor heating.

Thermal resistance: R=0.118 m² °K/W
Panel dimensions: 86 cm x 59 cm x 0,6 cm
20 panels per pack: 10.1 m
Thickness: 6 mm

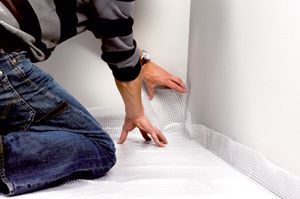

QUICKSTEP SCREEN DPM

The Quick-Step Screen is a double-sided, damp-resistant membrane with reinforcements. Thanks to its large surface, installation is quick and with fewer grooves. It also offers excellent protection against rising damp.

Dimensions: 25 m² (5 m x 5 m)
Thickness: 0.55 mm

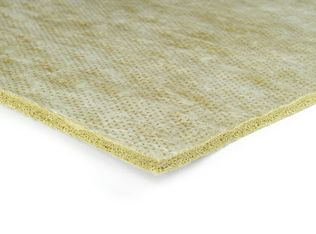

DURALAY DURATEX UNDERLAY

Sponge Rubber Underlay
Suitable for underfloor heating
Suitable for the floating installation of laminate and engineered floors
Nominal square weight: 2543 g/m² (75 oz/yd²)
Nominal roll weight: 38.3 kg (85 lbs)
Roll area: 15.07m² (1.37m x 11.0m)
Nominal thickness: 3.60 mm

DURALAY TIMBERMATE EXCEL DIY UNDERLAY

Sponge Rubber underlay
Suitable for underfloor heating
Suitable for the floating installation of laminate and engineered floors
Suitable for use on Concrete and wooden sub floors
Nominal square weight: 2545 g/m² (75 oz/yd²)
Nominal roll weight: 25.6 kg
Roll area: 10.00m² (0.685m x 14.60m)
Nominal thickness: 3.60 mm
Drum sound emission (overall loudness) (Sone): 56
Impact sound reduction (Delta Lw): 23 dB

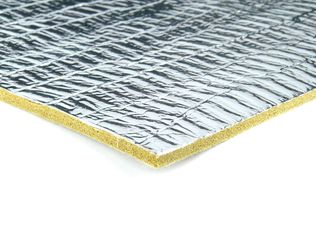

DURALAY TIMBERMATE EXCEL UNDERLAY

Sponge Rubber underlay
Suitable for underfloor heating
Suitable for the floating installation of laminate and engineered floors
Suitable for use on Concrete and wooden sub floors
Nominal square weight: 2545 g/m² (75 oz/yd²)
Nominal roll weight: 25.6 kg
Roll area: 15.07m² (11.0m x 1.37m)
Nominal thickness: 3.60 mm
Drum sound emission (overall loudness) (Sone): 56
Impact sound reduction (Delta Lw): 23 dB

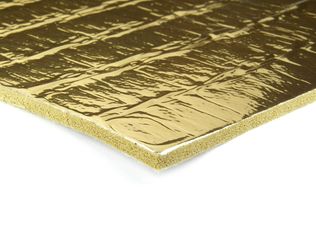

DURALAY SILENTFLOOR GOLD UNDERLAY

Sponge Rubber underlay
Suitable for underfloor heating
Suitable for the floating installation of laminate and engineered floors
Suitable for use on Concrete and wooden sub floors
Nominal square weight: 2983 g/m² (88 oz/yd²)
Nominal roll weight: 45.0 kg
Roll area: 15.07m² (1.37m x 11.0m)
Nominal thickness† 4.20 mm
Drum sound emission (overall loudness) (Sone) 53
Impact sound reduction (Delta Lw) 24 dB

GRIPPERRODS VAPOUR TAPE

A self adhesive seaming tape for use with Timbermate Excel and Silentfloor Gold Underlays. The tape creates a vapour barrier and strengthens underlay joins.
